Piezoelectric Vibration Pressure Transducer
Piezoelectric Vibration Pressure Transducer
Share to:

Piezoelectric Vibration Pressure Transducer

  • MSO-P1640H12T
  • 16*40mm
  • Open Type
  • 80°±15° (-6dB)
  • 40±1.0KHz
  • ≥115dB
  • Transmitter
  • 0.2～18m
  • MSO-P1640H12T.pdf
Inquire Add to Basket

Specification

ItemTransmitter
Center frequency40.0±1.0KHz
SPL≥115dB
Sensitivity-------
Directivity80°±15°
Capacitance2400±20%pF
Housing materialPlastic
Measure distance0.2～18m
Allowable input voltage

150Vp-p(40KHz)

Operating Temperature-20～+70℃
Weight2.0g

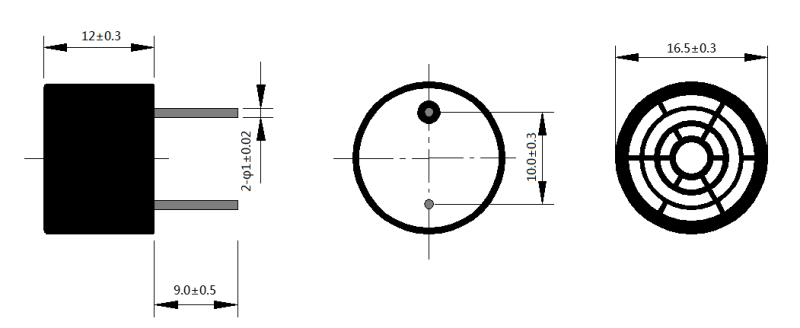

Appearance Drawing


Open Type
