MNS-LSR
Manorshi
Product Description

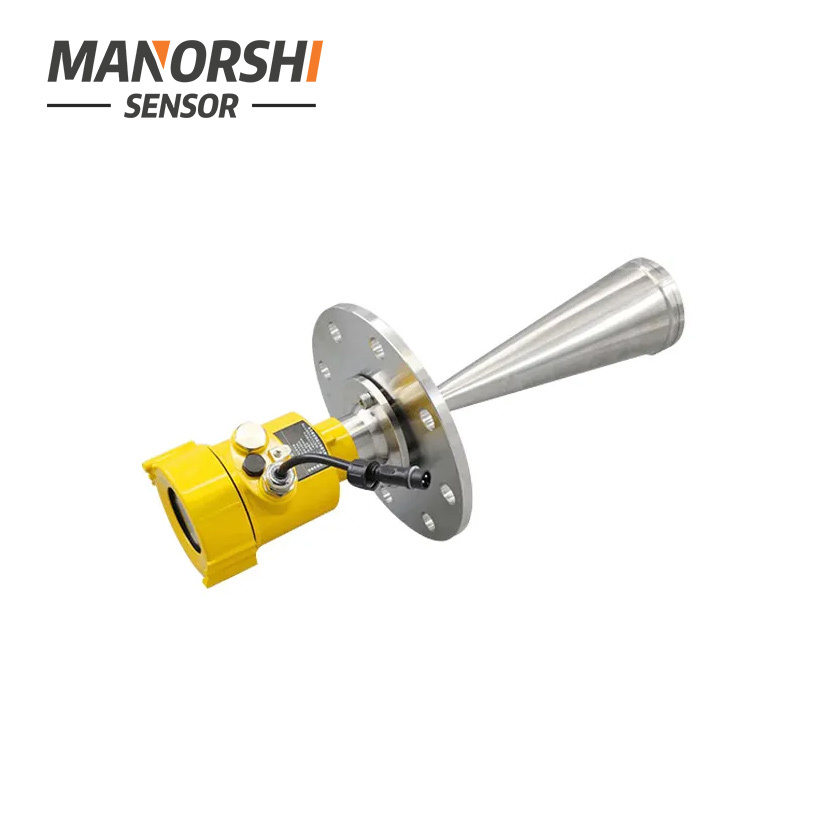

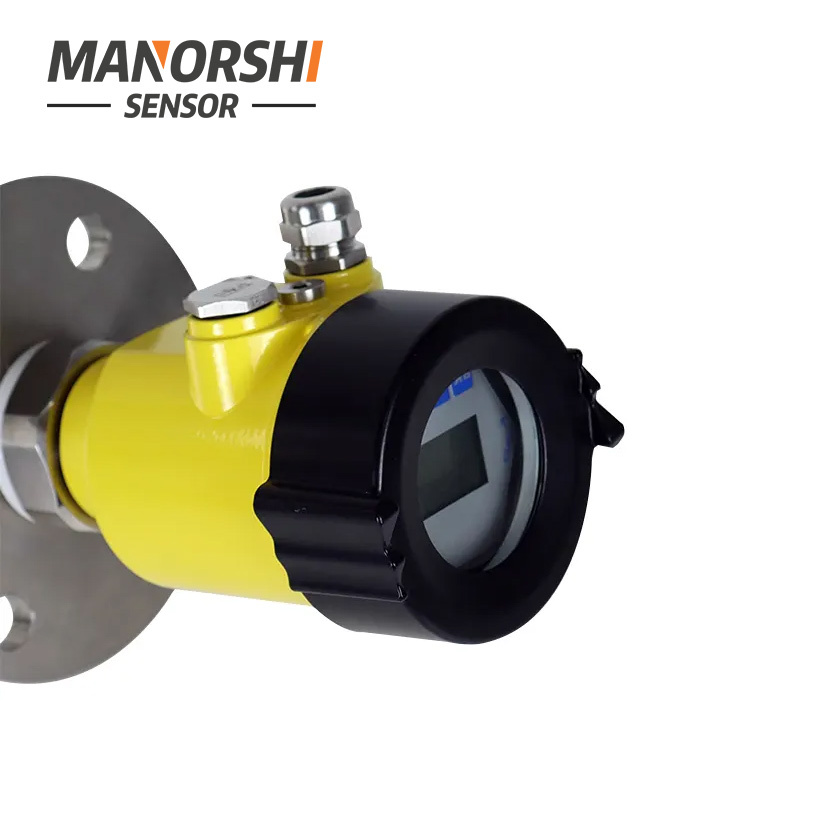

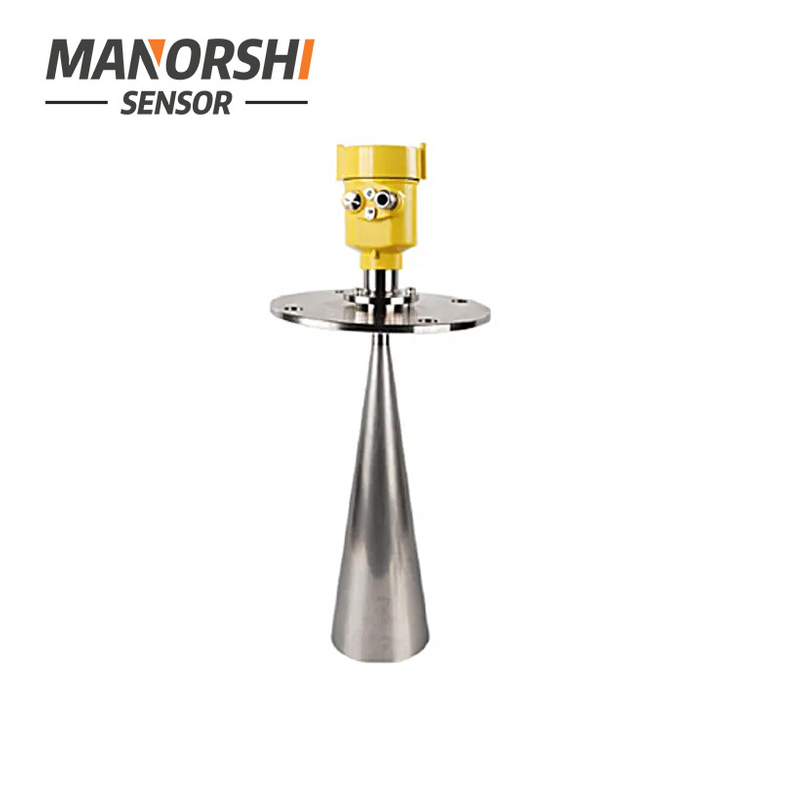

The MANORSHI MNS-LSR is a 26GHz radar level sensor designed for continuous level measurement of liquids, solid particles and dust.
The sensor provides a measuring range of 0 to 30 meters with a specified accuracy of ±10 mm. Multiple signal output options, including 4-20mA/HART, RS485 and Modbus, allow the MNS-LSR to be integrated with different industrial monitoring and control systems.
With multiple process connection options, explosion-proof configurations and a specified pressure range up to 4.0 MPa, the MNS-LSR is designed for industrial level measurement applications.
26GHz radar level measurement
Suitable for liquids, solid particles and dust
Multiple industrial communication and output options
Explosion-proof configurations available
Flexible process connection options
Parameter |
Specification |
|---|---|
Product Model |
MNS-LSR |
Brand |
MANORSHI |
Product Type |
Radar Level Sensor |
Frequency |
26GHz |
Measuring Range |
0–30 m |
Accuracy |
±10 mm |
Power Supply |
24VDC |
Signal Output |
4-20mA/HART, Two-Wire / Four-Wire / RS485 / Modbus |
Pressure Range |
0.1–4.0 MPa |
Process Connection |
G1/2 / Bracket / Flange |
Mounting Type |
Fixed Installation |
Explosion-Proof |
Exia II CT6 / Exd II CT6 |
Material |
Aluminum / Plastic |
Measuring Media |
Solid Particles / Dust / Liquid |
Listed Usage |
Power Plant |
Liquid level measurement
Solid particle level monitoring
Dust level measurement
Power plant level monitoring
Industrial tank level measurement
Material storage level monitoring
Process vessel level measurement
Industrial automation systems
The MANORSHI MNS-LSR combines 26GHz radar measurement with multiple industrial communication options.
Its 0–30 m measuring range, ±10 mm accuracy, pressure capability, flexible process connections and explosion-proof configurations make it suitable for liquid, solid particle and dust level monitoring in industrial systems.
The MNS-LSR is a 26GHz radar level sensor designed for continuous level measurement.
The product page lists liquids, solid particles and dust as measuring applications.
The specified measuring range is 0–30 m.
The specified accuracy is ±10 mm.
The sensor supports 4-20mA/HART, RS485 and Modbus.
Yes. The product specification lists 4-20mA/HART with two-wire and four-wire configurations.
The specified power supply is 24VDC.
The specified pressure range is 0.1–4.0 MPa.
The page lists G1/2, bracket and flange options.
Yes. The page lists Exia II CT6 and Exd II CT6 configurations.
The product specification lists aluminum and plastic.
The Alibaba title contains “Frequency Guided Level Sensor Radar,” but the technical attributes do not explicitly state “Guided Wave Radar.” The confirmed parameter is a 26GHz radar level sensor, so I recommend using “26GHz Radar Level Sensor” on the website unless the actual datasheet confirms the guided-wave principle.
