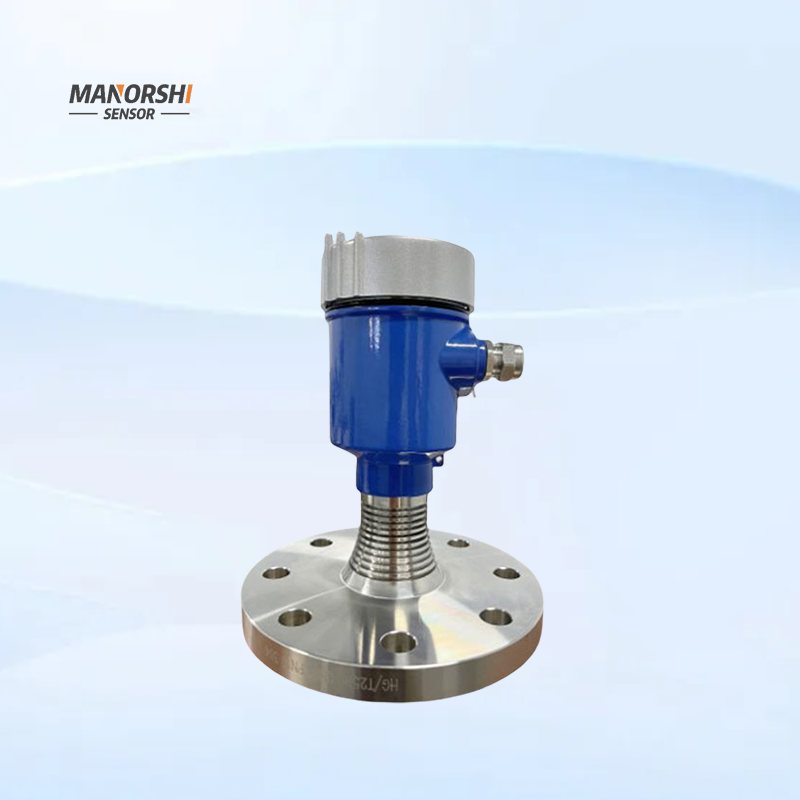

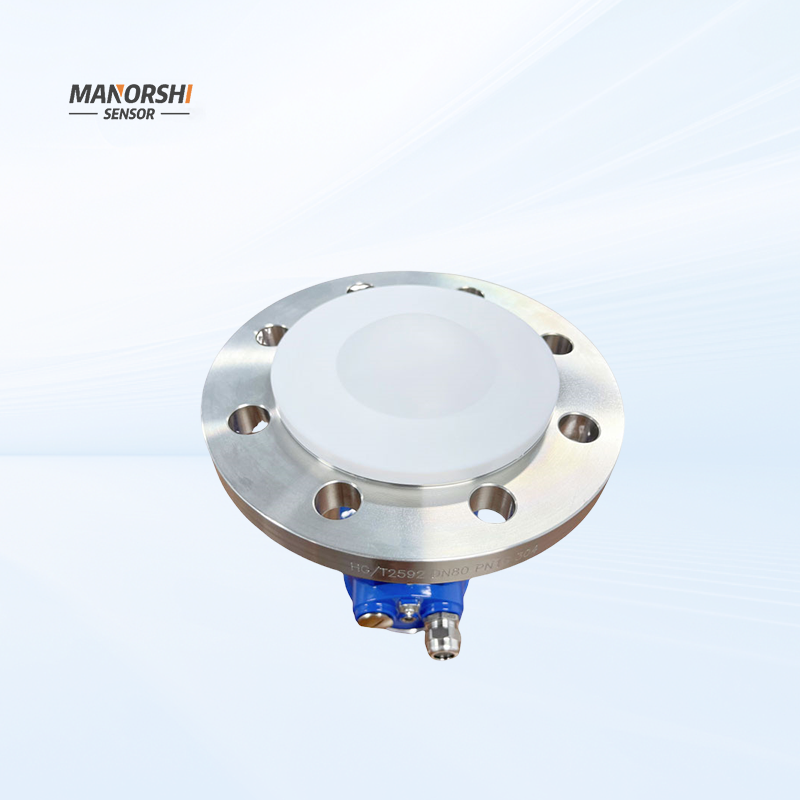

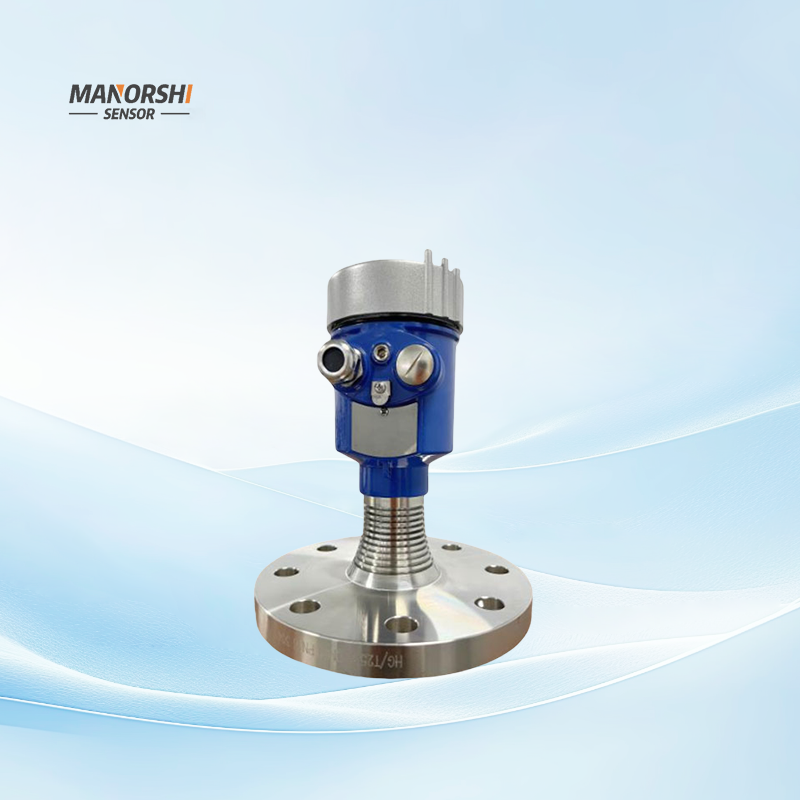

KSLL-H106 Radar Level Sensor
The MANORSHI KSLL-H106 is a radar level sensor designed for non-contact liquid level and solid material height measurement.
It uses radar wave level measurement technology to determine the distance between the sensor and the measured surface. With a measuring range of 0.05 to 120 meters and a specified accuracy of 2 mm, the KSLL-H106 is suitable for industrial level monitoring applications requiring long measuring distance and precise measurement.
The sensor provides a standard 4-20mA analog output and operates from a 12–24VDC power supply, making it suitable for integration with compatible industrial monitoring and control systems.
Key Features
Non-contact radar wave level measurement
Long measuring range for liquid and solid applications
High measurement accuracy
Standard 4-20mA industrial output
Wide operating temperature range
Technical Specifications
Parameter | Specification |
Product Model | KSLL-H106 |
Brand | MANORSHI |
Product Type | Radar Level Sensor |
Measurement Principle | Radar Wave Level Measurement |
Measuring Range | 0.05–120 m |
Accuracy | 2 mm |
Output Signal | 4-20mA |
Power Supply | 12–24VDC |
Operating Temperature | -40°C to +130°C |
Measurement Application | Liquid Level / Solid Material Height |
Mounting Type | Flange or Threaded |
Color | Yellow + Blue |
Why Choose the KSLL-H106?
The MANORSHI KSLL-H106 combines radar wave measurement technology with a 0.05–120 m measuring range and 2 mm accuracy.
Its 4-20mA output, 12–24VDC power supply, wide operating temperature range and flexible flange or threaded installation make it suitable for a variety of industrial liquid and solid level monitoring systems.
Frequently Asked Questions
What is the KSLL-H106?
The KSLL-H106 is a radar level sensor designed for non-contact liquid level and solid material height measurement.
What is the measuring range?
The specified measuring range is 0.05–120 m.
What is the measurement accuracy?
The specified accuracy is 2 mm.
What output signal does it provide?
The KSLL-H106 provides a standard 4-20mA analog output.
What power supply does it require?
The product specification lists a 12–24VDC power supply.
What is the operating temperature range?
The specified operating temperature range is -40°C to +130°C.
How is the sensor installed?
The product supports flange or threaded mounting.
Can it measure solid materials?
Yes. The product page lists both solid height and liquid level as measurement applications.
It uses radar wave level measurement and is intended for non-contact level measurement.
Does the product use 5VDC?
The Alibaba product title contains “5vdc,” but the technical attribute table specifies 12–24VDC. Therefore, 12–24VDC should be used as the confirmed specification.
Does the page specify the protection level?
No. The current page does not provide an IP protection rating.
Does the page specify a radar frequency?
No. The current product page does not provide the radar operating frequency.
