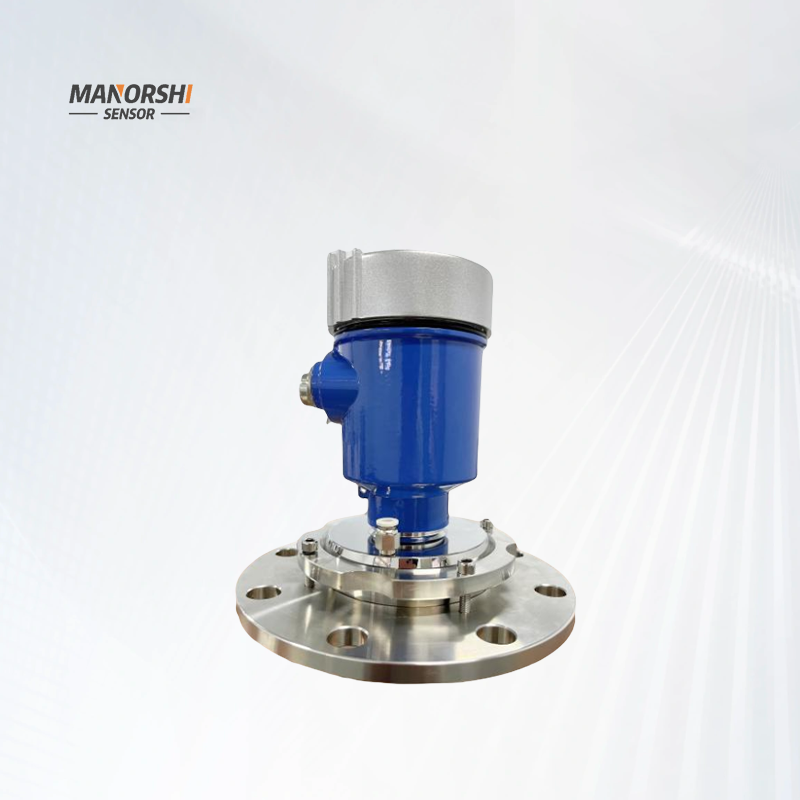

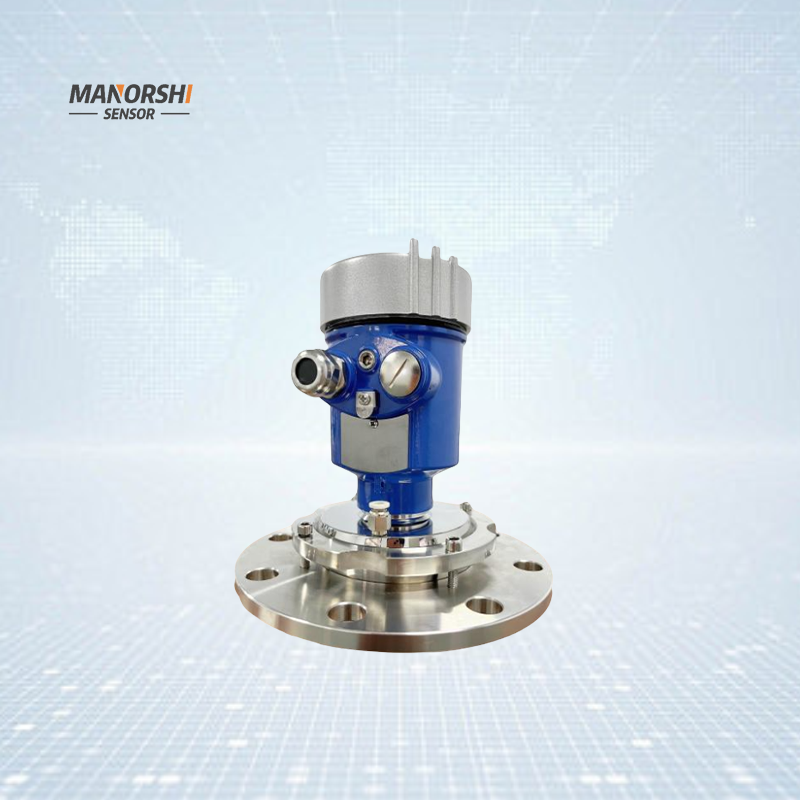

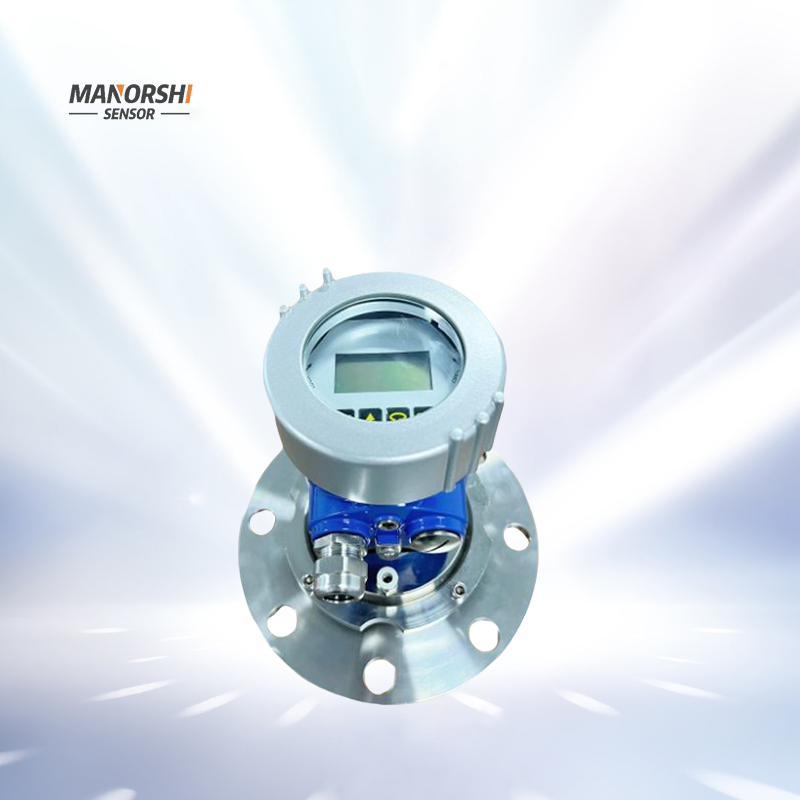

KSLL-H108 80GHz Radar Liquid Level Sensor
The MANORSHI KSLL-H108 is an 80GHz radar level sensor designed for non-contact liquid level and solid material height measurement.
Using radar wave level measurement technology, the sensor provides a measuring range of 0.05 to 120 meters with a specified accuracy of 2 mm. A standard 4-20mA output allows the sensor to be integrated with compatible industrial monitoring and control systems.
With a wide operating temperature range, long measuring distance and flange or threaded mounting options, the KSLL-H108 is suitable for industrial tanks, process vessels and solid material level measurement applications.
Key Features
80GHz radar wave level measurement
Long measuring range for liquid and solid applications
High measurement accuracy
Standard 4-20mA industrial output
Wide operating temperature adaptability
Technical Specifications
Parameter | Specification |
Product Model | KSLL-H108 |
Brand | MANORSHI |
Product Type | Radar Liquid Level Sensor |
Radar Frequency | 80GHz |
Measurement Principle | Radar Wave Level Measurement |
Measuring Range | 0.05–120 m |
Accuracy | 2 mm |
Output Signal | 4-20mA |
Power Supply | 12–24VDC |
Operating Temperature | -40°C to +130°C |
Mounting Type | Flange or Threaded |
Measurement Application | Liquid Level / Solid Material Height |
Housing / Package Material | Aluminum |
Color | Yellow + Blue |
Why Choose the KSLL-H108?
The KSLL-H108 combines 80GHz radar technology, a long measuring range, 2 mm accuracy and standard 4-20mA output.
Its wide operating temperature range and flexible flange or threaded installation provide a practical solution for liquid and solid level monitoring in industrial process environments.
Frequently Asked Questions
What is the KSLL-H108?
The KSLL-H108 is an 80GHz radar level sensor designed for liquid level and solid material height measurement.
Is the KSLL-H108 an ultrasonic sensor?
No. Although the old Alibaba URL contains the word “Ultrasonic,” the product attributes identify the KSLL-H108 as a radar wave level sensor.
What is the measuring range?
The specified measuring range is 0.05–120 m.
What is the measurement accuracy?
The specified accuracy is 2 mm.
What output signal does it provide?
The KSLL-H108 provides a standard 4-20mA analog output.
What is the power supply?
The specified power supply is 12–24VDC.
What is the operating temperature range?
The specified operating temperature range is -40°C to +130°C.
How can the sensor be installed?
The product supports flange or threaded mounting.
Can it measure solid materials?
Yes. The product page lists both solid height and liquid level as applications.
Can it be used for high-temperature measurement?
Yes. The specified operating temperature reaches +130°C.
Does the page provide an IP rating?
No. The current Alibaba page does not provide a protection level, so an IP rating should not be added until confirmed.
Does the page provide a numerical pressure rating?
No. Although the page mentions high-pressure application environments, it does not provide a numerical pressure specification.
