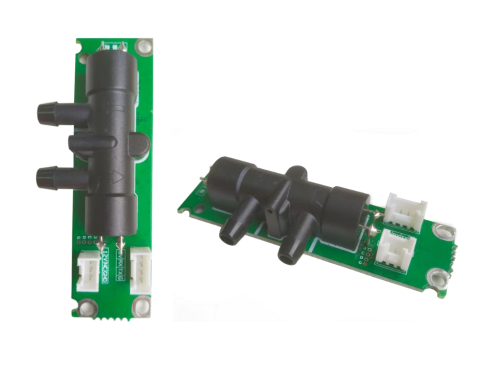

ultrasonic-oxygen-concentration-sensor-for-portable-oxygenerator

  • NL-PD10NF40-S
  • MANORSHI
  • NL-PD10NF40-S
  • 99*22
  • 5V
  • NL-PD10NF40-S.pdf

Product Description


Item

Value

Concentration measurement

21%~95.6%

Concentration resolution

0.1%

Concentration detection accuracy

 ±1.5% FS@(5~60°C)

Flow detection range

0-10L/min

Flow detection accuracy

±0.15L/min@ (5~60°C)

Digital output

USART

Operating Voltage

5V

Operating temperature

5~60°C

Relative humidity

0~100% (non-condensing)

Storage temperature

-40~85°C

Storage humidity

0~100% (non-condensing)


Appearance Drawing

微信图片_20211012182103
