40kHz Waterproof One B Ody Transmitter And Receiver Ultrasonic Sensor

  • MSW-A1240H08TR
  • 12 * 8mm
  • Enclosed
  • X:110°±15 Y:70° ±10
  • 40±1.0KHz
  • 150 min
  • Dual use

Specification

ItemUnitSpecification
Center FrequencyHz40±1.0k
Function
Transmitting and receiving(Dual use)
Construction
Water proof
Terminal
PIN
Echo SensitivitymV150 min
Decay timems1.1 max
Directivity X-axisdeg110±15
Directivity Y-axisdeg70 ±10
CapacitancePF1800±15%
Mean time to failure
50000h
Allowable Maximum input voltageVp-p140(40KHZ) pulse width 0.5ms, interval 20ms
Operating Tem.Range-20 to +70
Storage Temerature-30 to +80
Housing Material
Aluminum

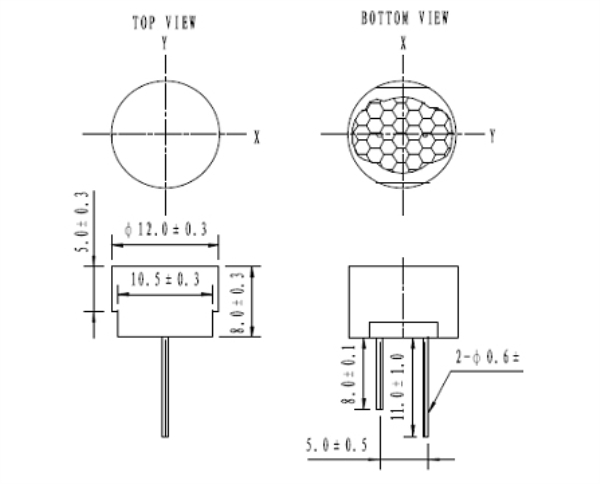

Appearance Drawing
