10mm 40Khz Plastic Case Open type ultrasonic oxygen sensor for oxygen concentrator

  • MSO-PT1040H07R
  • 10 * 7mm
  • Open Type
  • 60°±15° (-6dB)
  • 40±1.0KHz
  • ≥110dB
  • ≥-67dB
  • Transmitter&Receiver
  • 0.2~12m

Specification

Item

Transmitter

Receiver

Note

Center frequency

40.0±1.0KHz


SPL

≥110dB

-------

0dB=0.0002μbar

Sensitivity

-------

≥-67dB

0dB=1volt/μbar

Directivity

60°

-6dB typical

Capacitance

2300±30%pF


Housing material

Plastic


Measure distance

0.212m


Driving Voltage

≤40Vrms


Operating Temperature

-20+70℃


Storage Temperature

-40+85℃

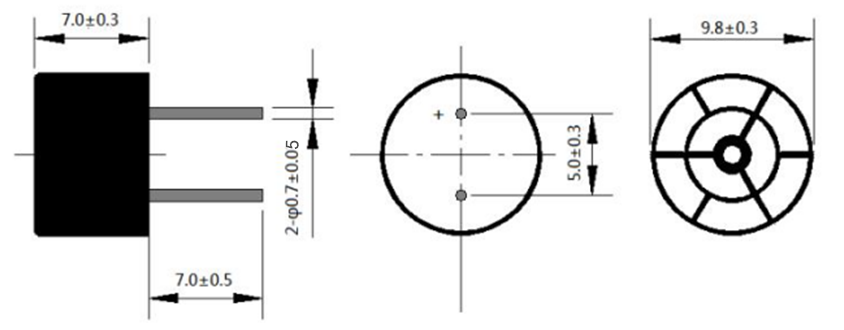

Appearance Drawing
