RT Split Air Ultrasonic Sensor 25KHz for for Mouse Repeller

  • MSO-AT1625H12R
  • 16 * 12mm
  • Open Type
  • 80°±15° (-6dB)
  • 24±1.0kHz
  • ≥115dB
  • ≥-65dB
  • Receiver
  • MSO-A1625H12R.pdf

Specification

ItemtransmitterreceiverNote
Center Frequency24±1.0kHz
SPL≥115dB---------0dB=0.0002μbar
Sensitivity--------v> ≥-65dBV/μMbar0dB=1vol/μbar
Directivity80±15°-6dB typical
Capacitance 2600pF±20%@1KHz
Housing materialAl

 Measure distance
 0.2~12m

  Weight                                                        2.31g

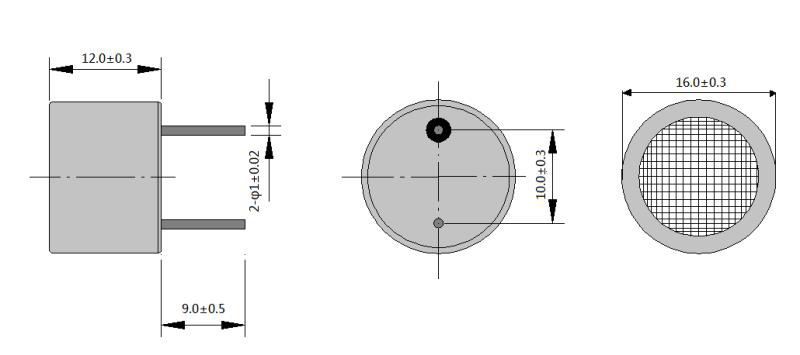

Appearance Drawing
