SMT 9650 nurse call system small magnetic buzzer with sealing epoxy SMD

  • SM09ES05A

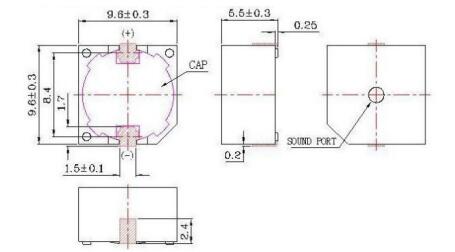

  • 9.6 * 9.6* 5.5mm
  • 5 VDC
  • 2700±100Hz
  • Min.85dB
  • MAX. 30 mA
  • 4-7 VDC

Product Description

No.

Item

Unit

Specifications

1-1

Rated Voltage

VDC

5

1-2

Operating Voltage

VDC

4-7

1-3

Rated CurrentMax

mA

30

1-4

Min Sound Output at 10cm

dB

85

1-5

Resonant Frequency

Hz

2700±100

1-6

Operating Temperature

-40~+85

1-7

Storage Temperature

-40~+85

1-8

Weight

g

1.5

1-9

Housing Material

         LCP

1-10

Lead Pin Material

       Red CopperDSn
