Home / SMD Buzzer / 0-20mm / 3V 3.6V 5V 9V 85db Ultrathin SMD Magnetic Sounder SMT Buzzer
Share to:

3V 3.6V 5V 9V 85db Ultrathin SMD Magnetic Sounder SMT Buzzer

  • SM08ET03A
  • 8.5 * 8.5 * 3.0mm
  • 3.6Vp-p
  • 2731±500Hz
  • ≥86dB@10cm
  • ≤100mA
  • 2.5~4.5Vp-p

Specification

Model NoSM08ET03A
Rated Voltage(square wave)      (Vp-p)3.6
Operating Voltage               (Vp-p)2.5~4.5
Rated Current(max)            (mA)100
Min Sound Output at 1kHz/10cm (dB)86
Rated Frequency               (Hz)2731
Coil Resistance(Ω)16±2.4
Operating Temperature           (℃)-20~+60
Storage Temperature             (℃)-30~+80
Weight (g)0.8
Case material and colorLCP/BLACK

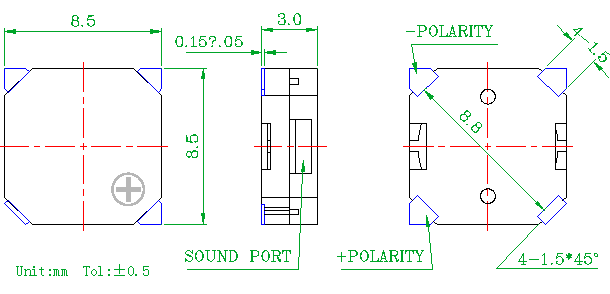

Appearance Drawing

08ET03A
